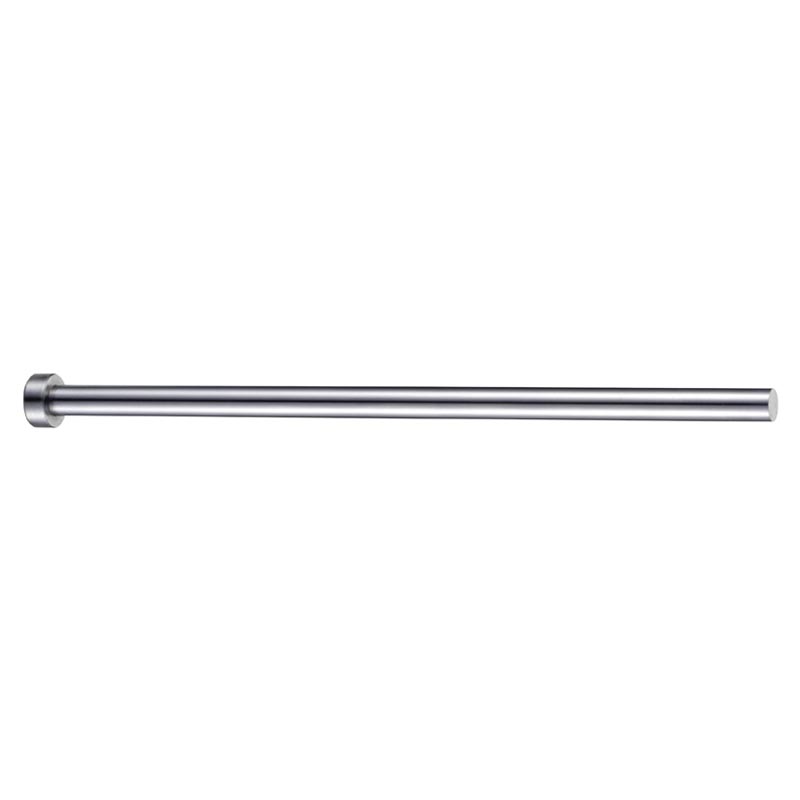

JEP

  • Material SKD61/1.2344/H13/40 CrMoV5
    Hardness

    Core 40 ± 2 HRC

    Surface ≥ 950 HV
    Treatment Nitrided
  • Material option available
    Material SKH51/1.3343/M2/HSS/S6-5-2
    Hardness

    Shaft 60 ± 2 HRC

    Head 45 ± 5 HRC

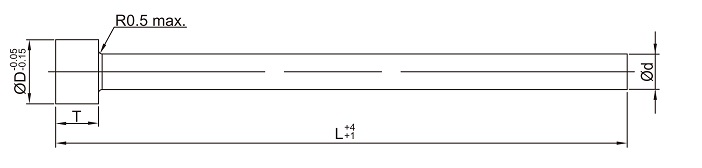

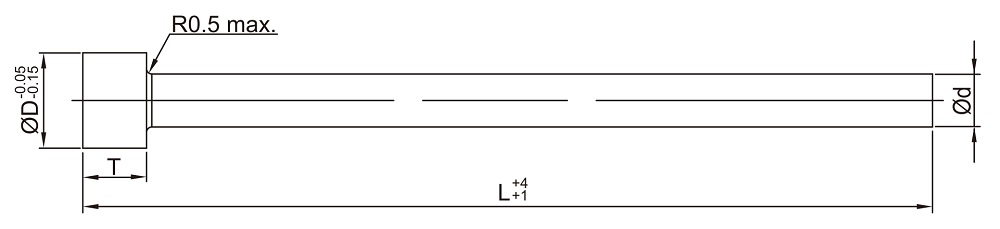

    JIS TOLERANCES

    d

    Tolerance

    1.0 1.5

    -0.005 -0.012

    2 to 15

    -0.01 -0.02

    T

    Tolerance

    4

    0 -0.020

    6 to 8

    0 -0.030
