Products

MES

Home/Products/ Plastic Mold Components - Metric (DIN‧ISO)/ Ejector Sleeves/MES

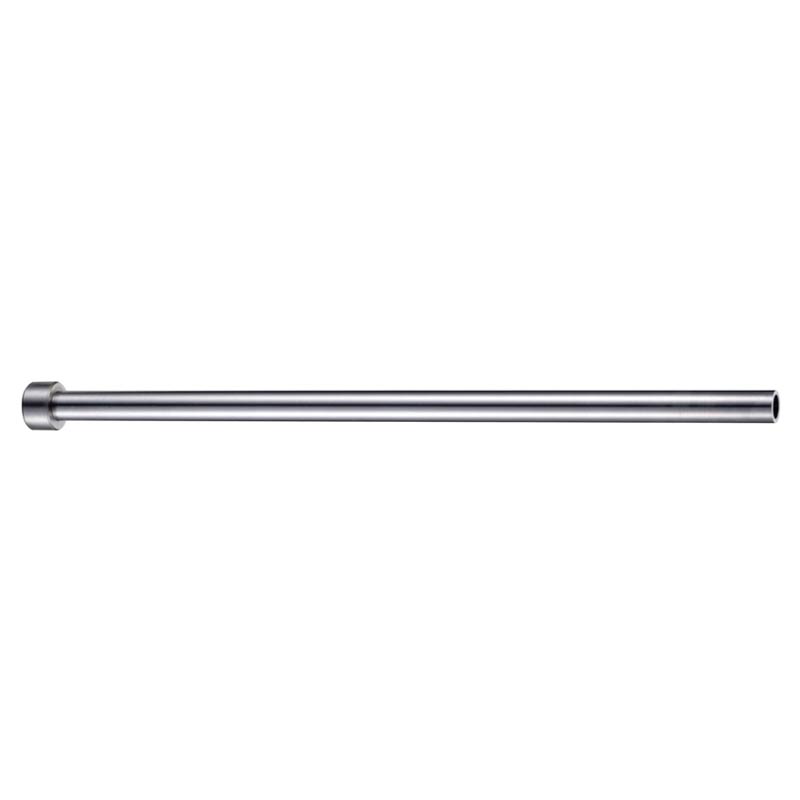

MES

  • DIN ISO 8405 (DIN 16756)
    Material 1.2344/40 CrMoV5/SKD61/H13
    Hardness Core 40 ± 2 HRC Surface ≥ 950 HV
    Treatment Nitrided
  • Material option available
    Material 1.3343/HSS/S6-5-2/SKH51/M2
    Hardness Shaft 60 ± 2 HRC Head 45 ± 5 HRC
MES
MES
