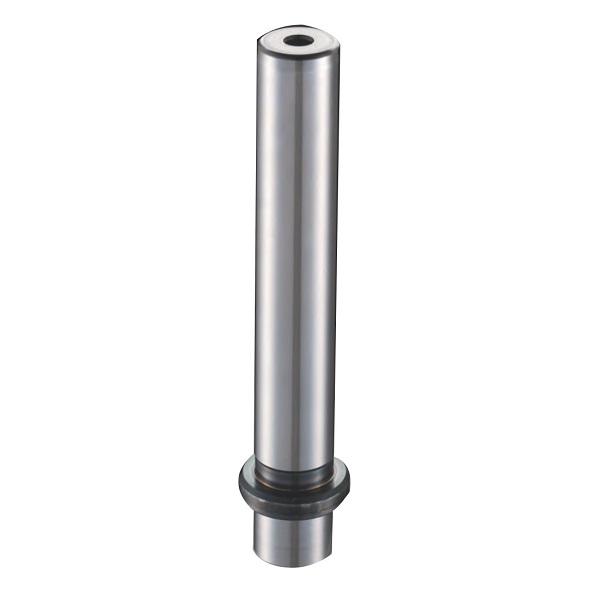

PDE-GS

Material

Steel DIN 1.2067 / 1.3505
ISO B1 / 100Cr6
AISI / SAE 52100
JIS SUJ 2

Hardness

60-64 HRC

Finish

Hard chrome plating
(Not suitable for the bushings require ball cages)

Cylindrical Tolerance

1.000: .00010
1.25(1¼) – 3.000: .00015

Diametrical Tolerance

/

Diameter

Tolerance

d

d1

.750(¾)

.875(⅞)

1.00

1.25(1¼)

1.50(1½)

1.75(1¾)

2.00

2.50(2½)

3.00
