BBE

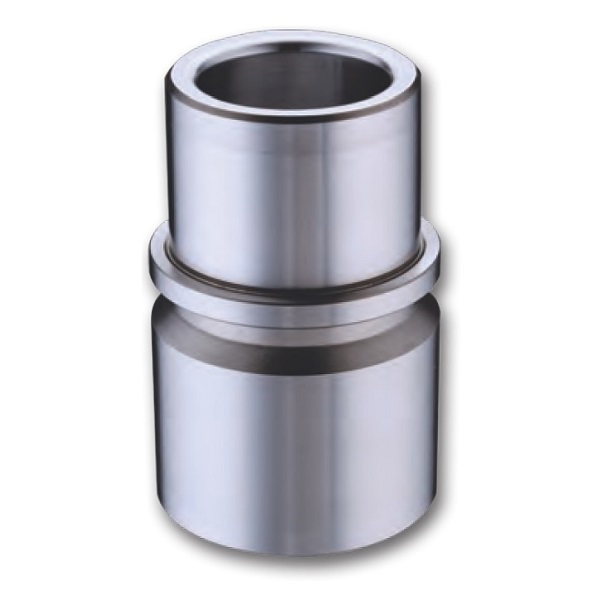

Guide Ball - Bearing Bushing

Material	Steel DIN 1.2067 / 1.3505 ISO B1 / 100Cr6 AISI / SAE 52100 JIS SUJ 2
Hardness	60-64 HRC
Finish	Precision ground
Diametrical	/

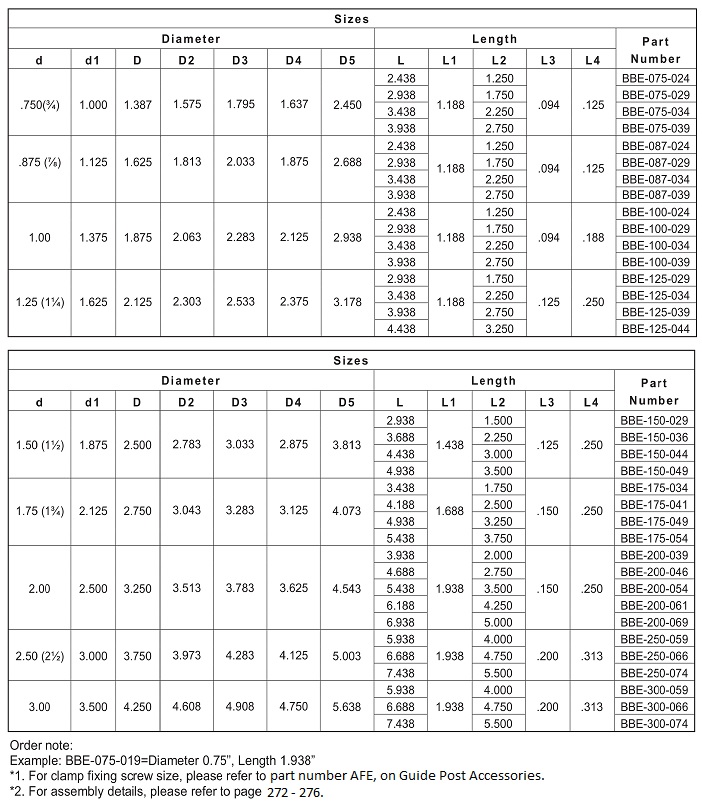

Diameter (d)	Tolerance
Diameter (d)	d1	D
.750(¾) ~ .875(⅞)
1.00 ~ 1.75(1¾)
2.00 ~ 3.00

d	Thread
0.75 ~ 1.25	1/4”
1.50 ~ 3.00	5/16”

BBE

BBE

Application recommendations
Specification description

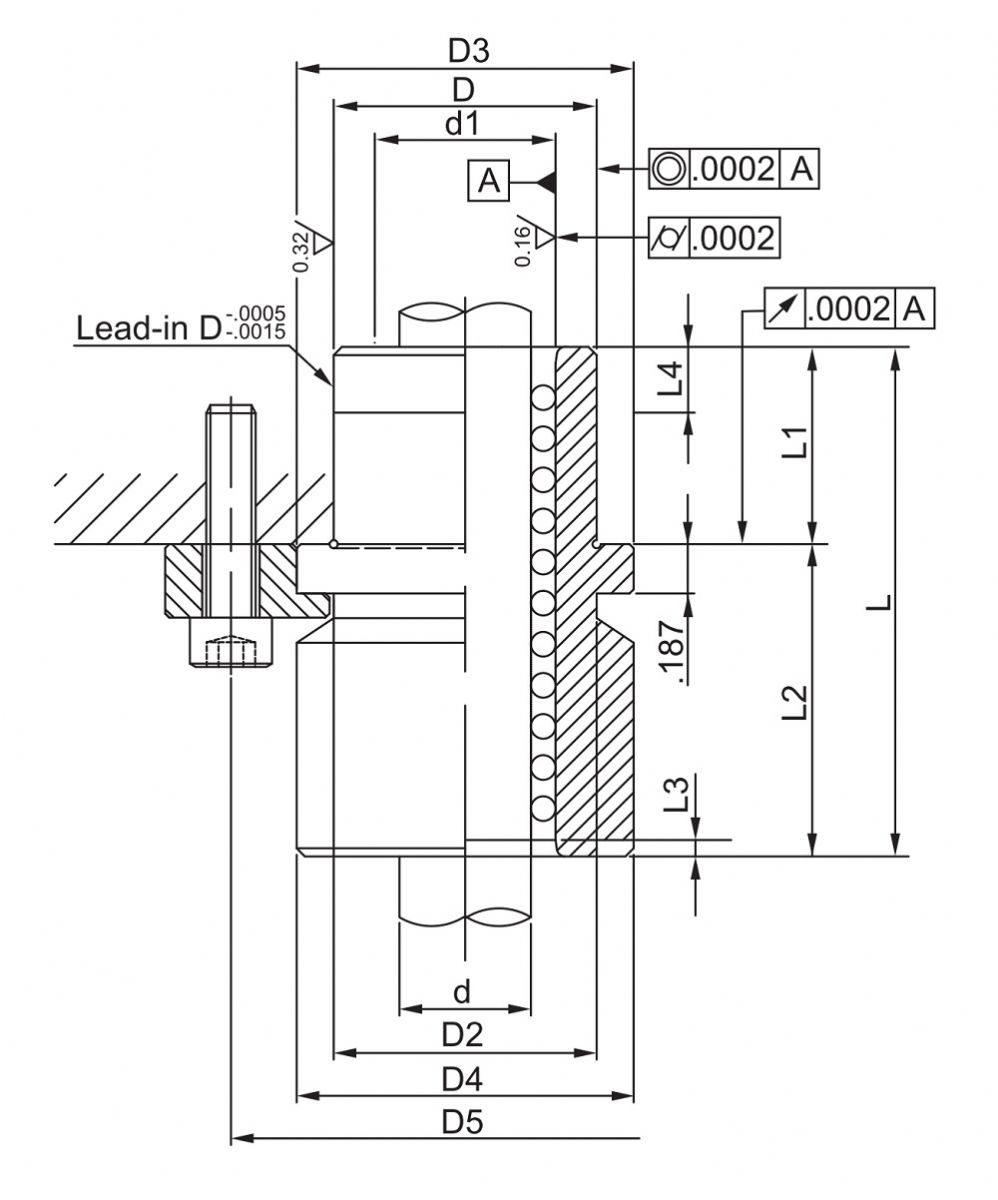

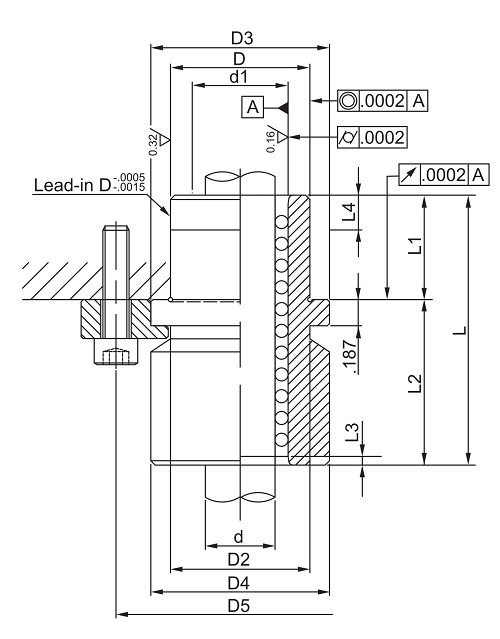

Assembly Details

*For assembly details, please refer to page 272-276.
