Home/Products/ Precision Guide Element (Inch)/ Guide Ball Cage/CCE

CCE

Guide Ball Cage

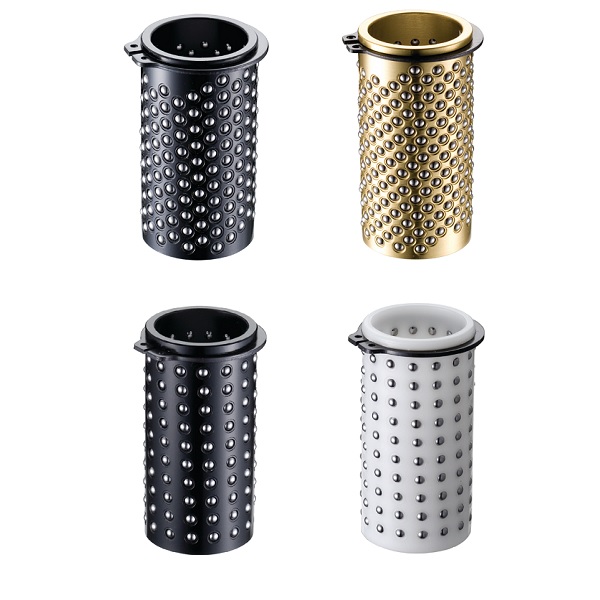

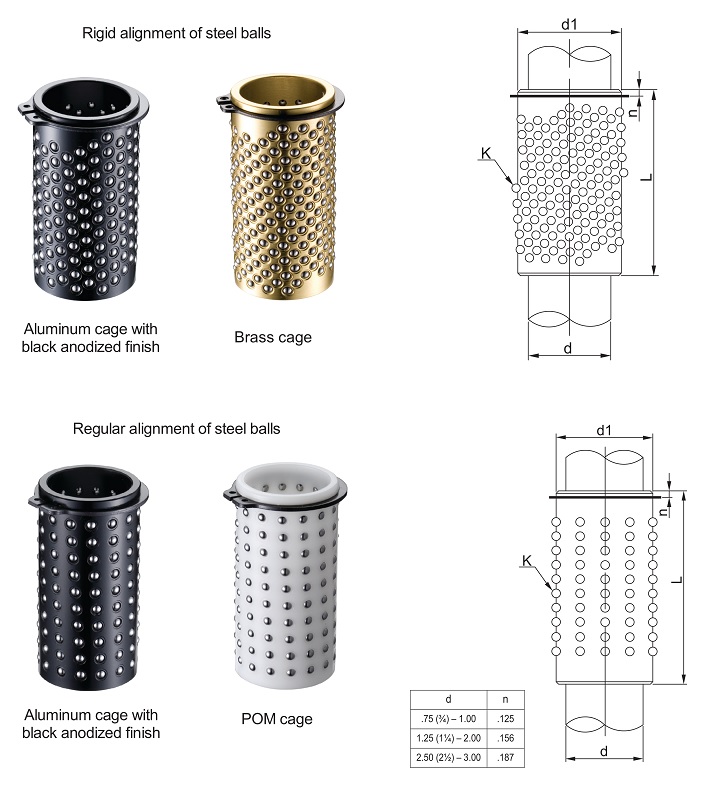

- Upside - Rigid alignment of steel balls
Aluminum cage with black anodized finish (Left)
Brass cage (Right)

- Under - Regular alignment of steel balls
Aluminum cage with black anodized finish (Left)
POM cage (Right)

Inquiry

CCE

Application recommendations

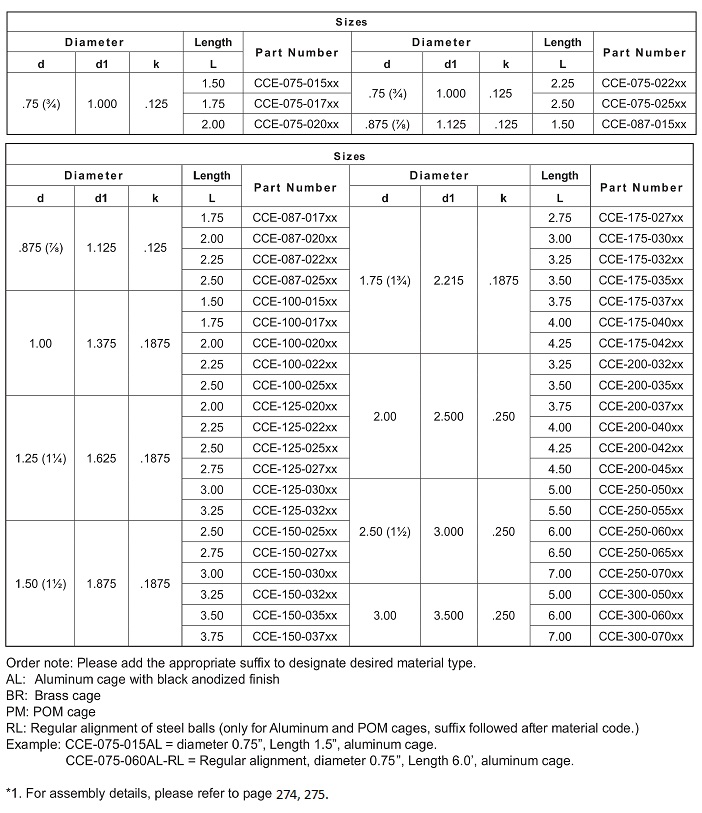

Specification description

Assembly Details

*For assembly details, please refer to page 274-275.
