BBM

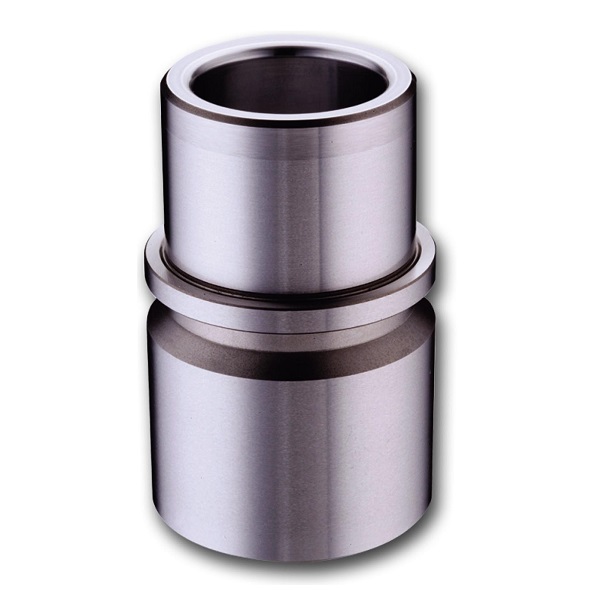

Guide Ball - Bearing Bushing with Shoulder

Material	Steel DIN 1.2067/1.3505 ISO B1/100Cr6 AISI/SAE 52100 JIS SUJ2
Hardness	60-64 HRC
Finish	Precision ground
Assembly	Hole bore ISO H5

BBM

BBM

Application recommendations

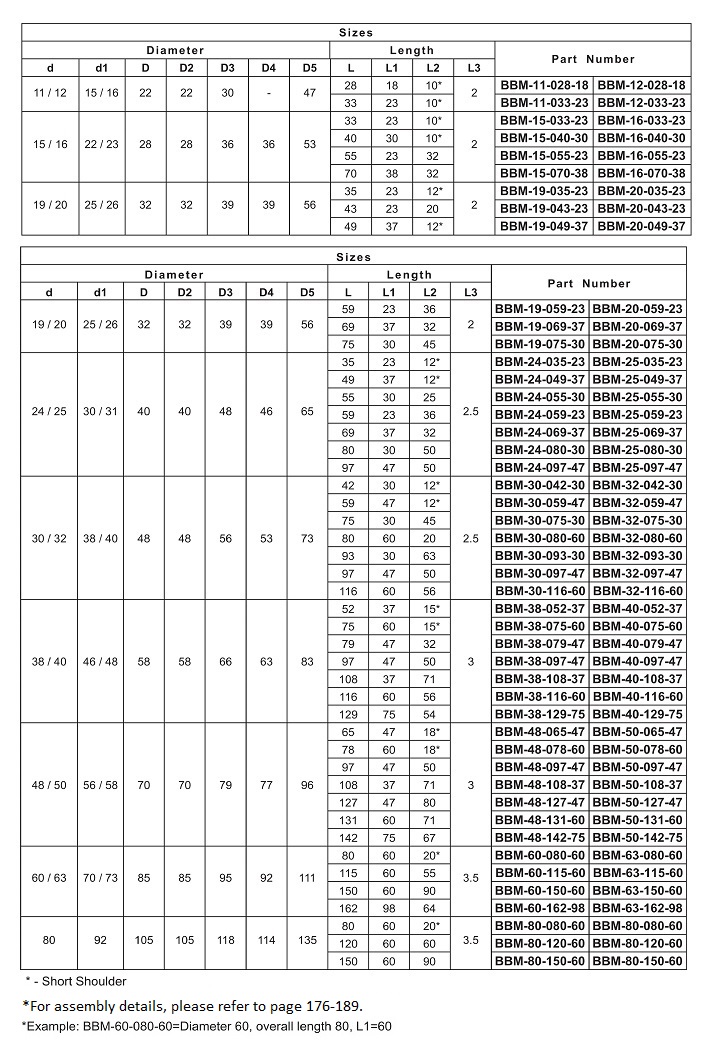

Specification description

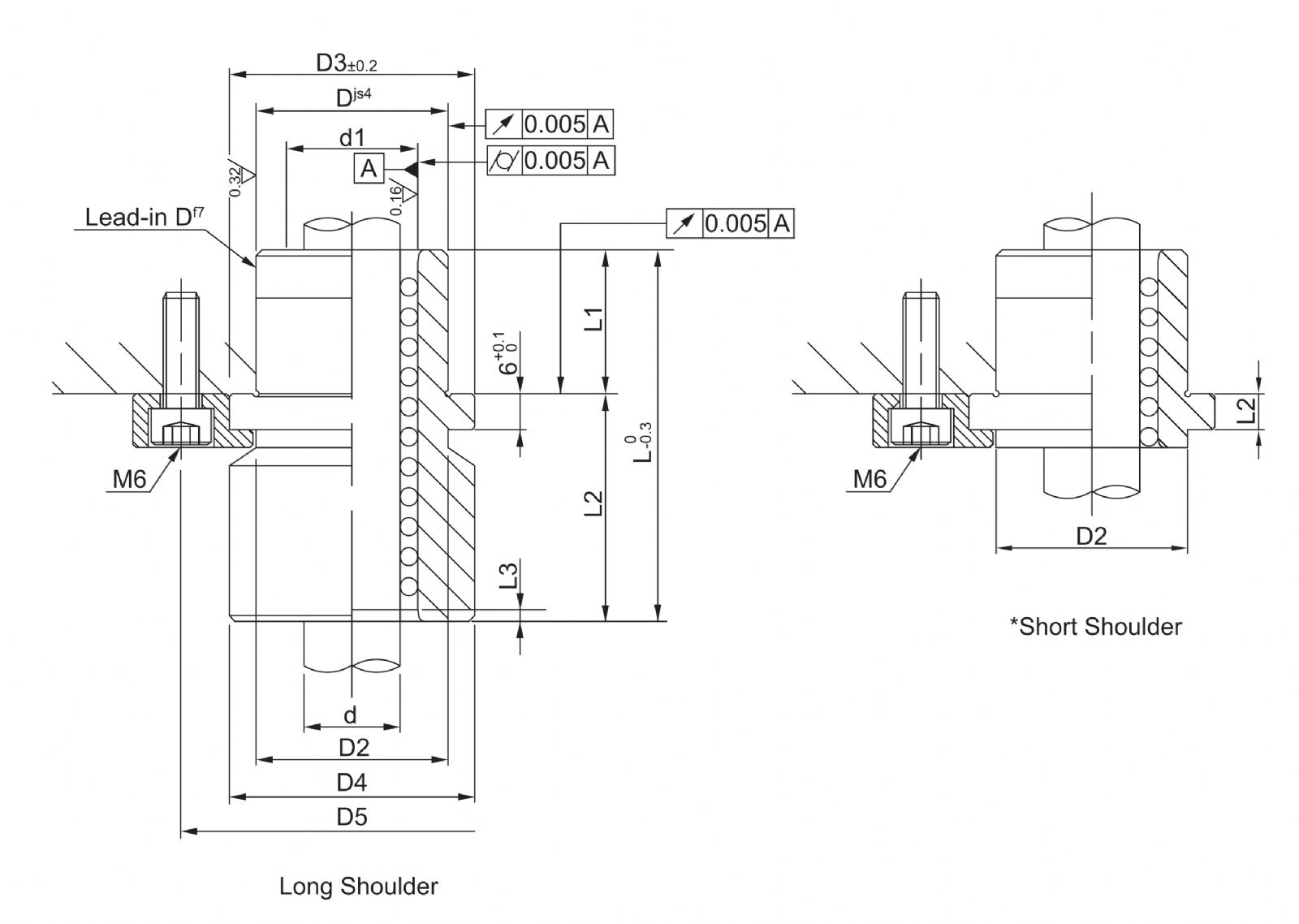

Assembly Details

*For assembly details, please refer to page 176-189.
