Home/Products/ Precision Guide Element (Metric)/ Guide Bushing/BDM

BDM

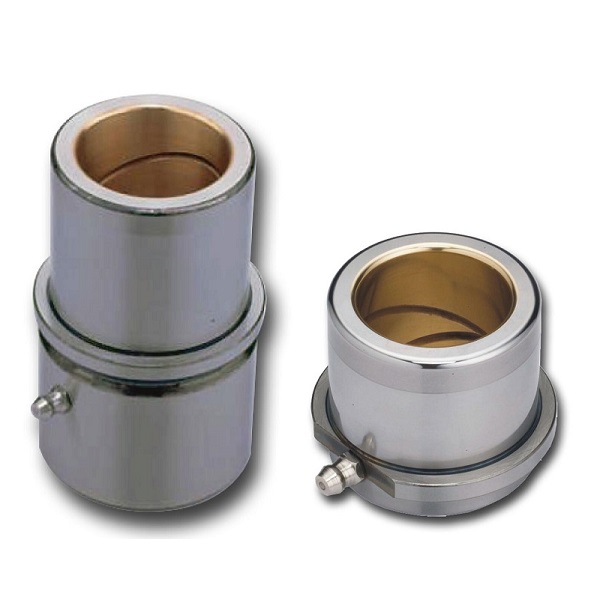

Guide Bushing with Shoulder

Steel w/ Bronze plating

BDM

BDM

Application recommendations

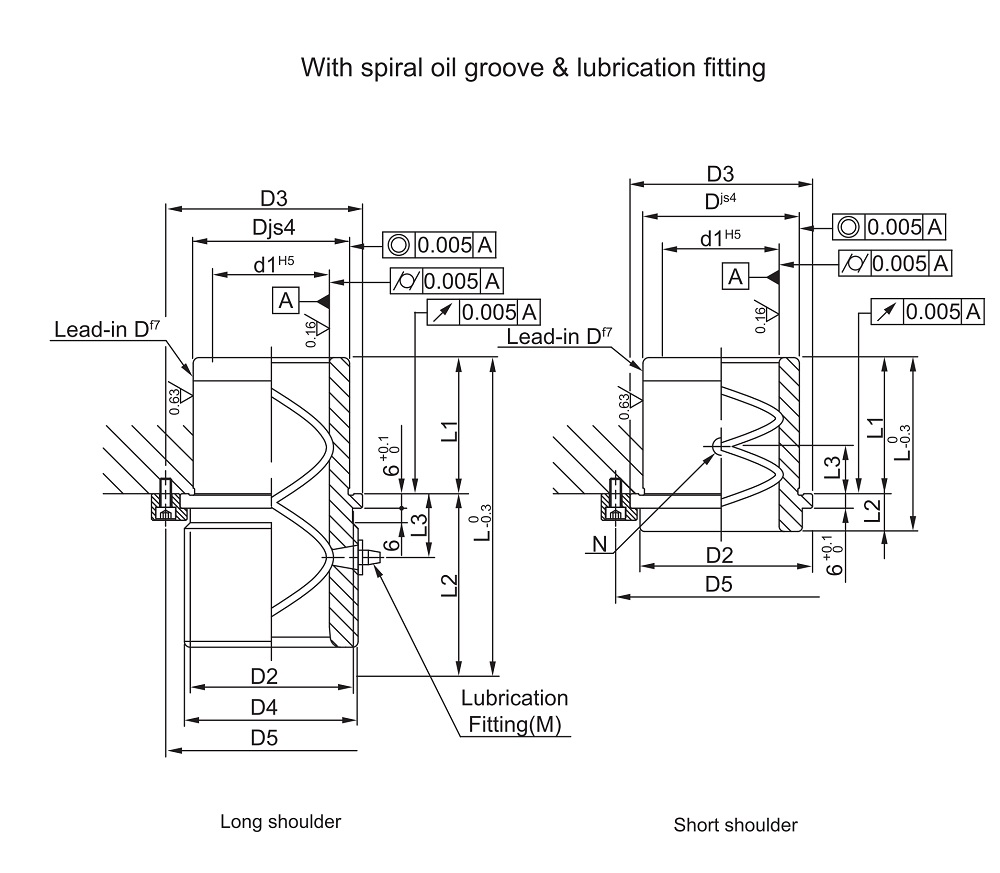

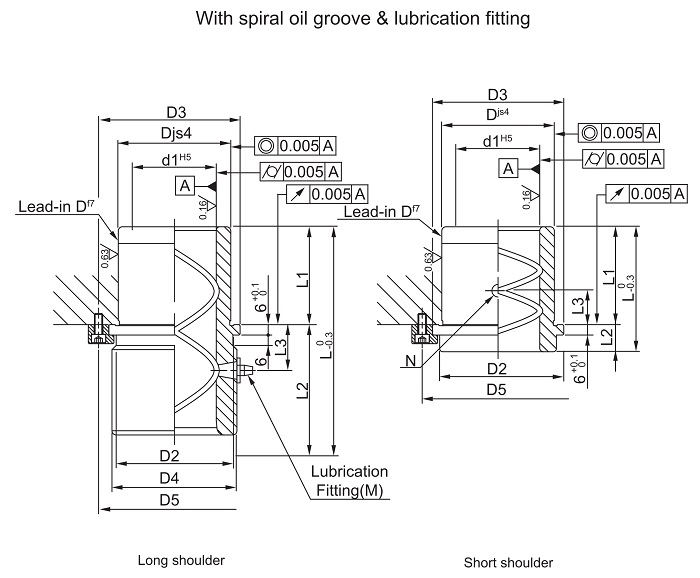

Product description

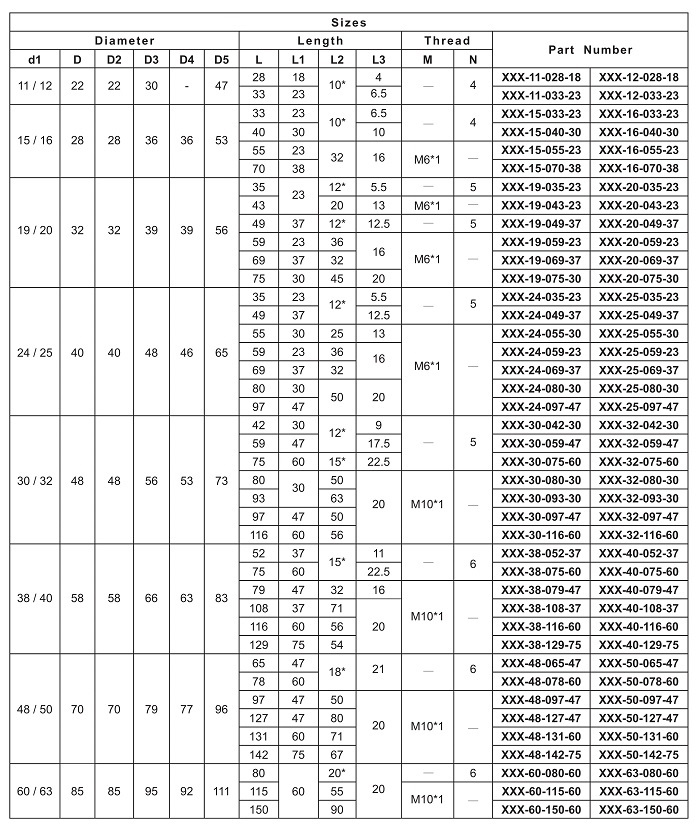

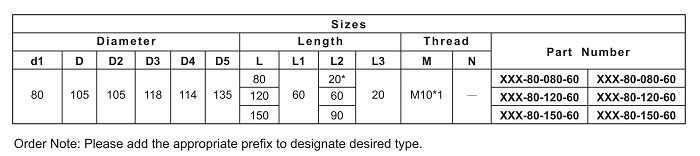

Specification description

Assembly Details

*For assembly details, please refer to page 168, 169, 171, 172, 174.
