PAM(small)

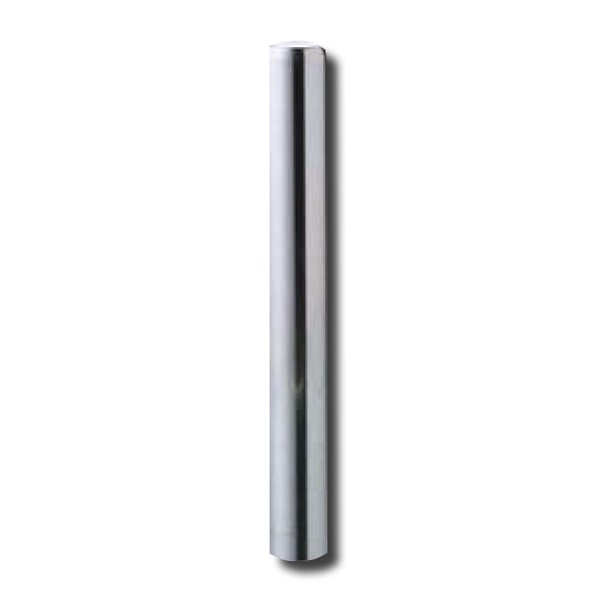

Small Straight Guide Post

Material Steel DIN 1.2067/1.3505
         ISO B1/100Cr6
         AISI/SAE 52100
         JIS SUJ2
Hardness 60-64 HRC
Finish Precision ground
Assembly Hole bore ISO N5
Cylindrical Tolerance ∅3 - ∅10: 0.001

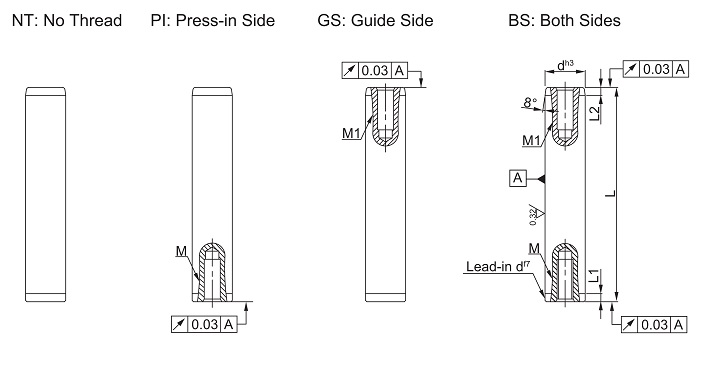

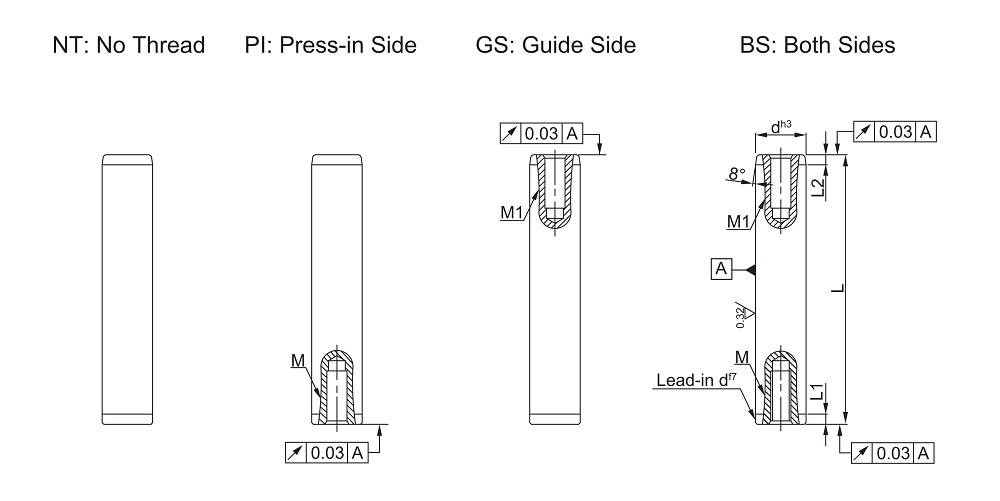

Thread Data

d

M

M1

3

-

-

4

-

-

5

M3

M3

6

M3

M3

8

M4

M4

10

M5

M5
