PAM

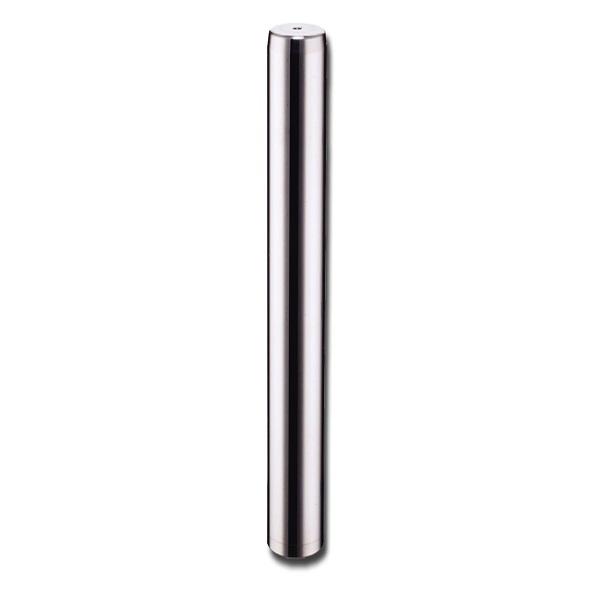

Straight Guide Post

Material Steel DIN 1.2067/1.3505
         ISO B1/100Cr6
         AISI/SAE 52100
         JIS SUJ2
Hardness 60-64 HRC
Finish Precision ground
Assembly Hole bore ISO N5
Cylindrical
Tolerance
∅11 - ∅16: 0.001
∅19 - ∅25: 0.002
∅30 - ∅80: 0.003

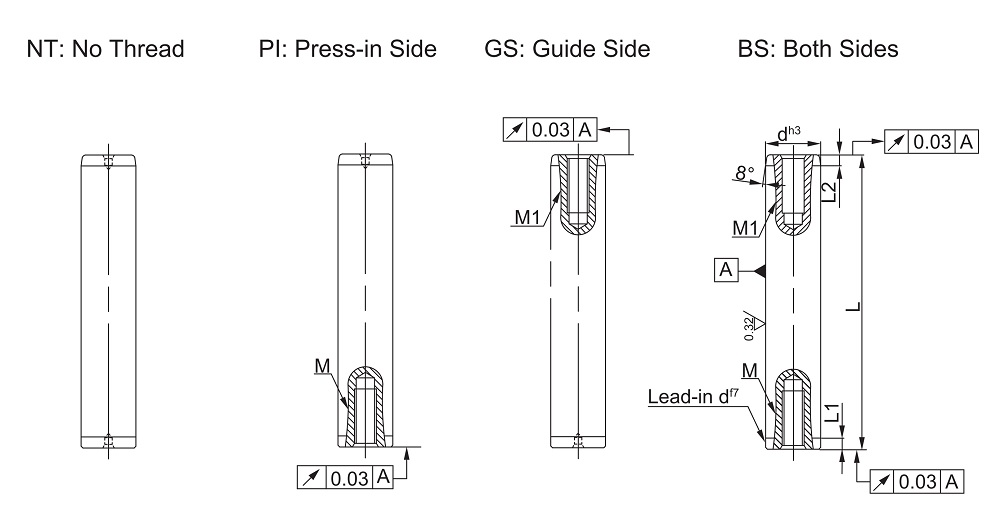

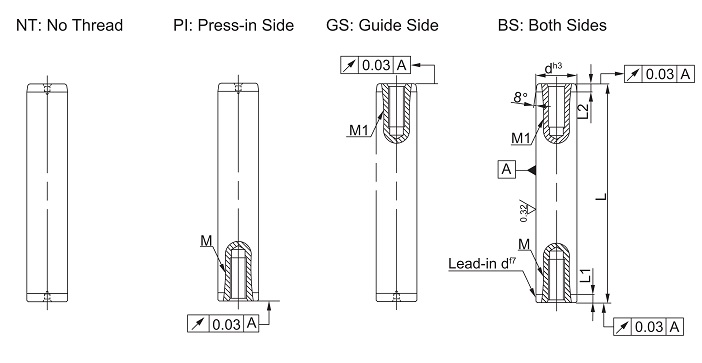

Thread Data

d

M

M1

11-16

M6

M6

19-25

M8

M8

30-50

M10

M10

60-63

M12

M12

80

M12

M12
