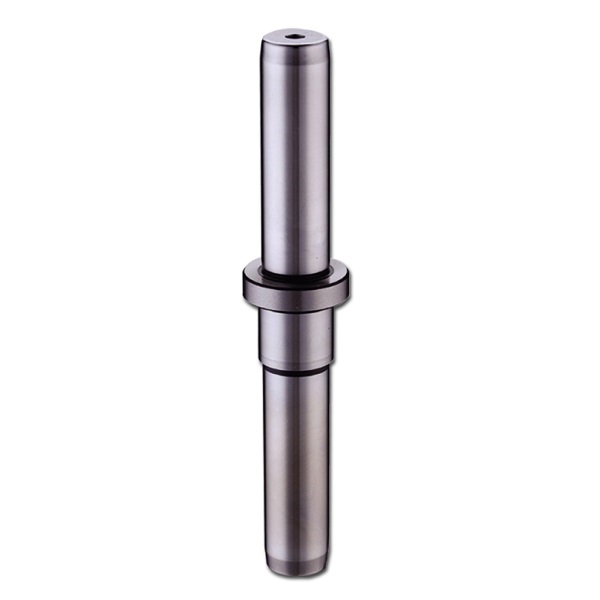

Guide Post with Small Middle Mount Shoulder
Material |
Steel DIN 1.2067/1.3505
ISO B1/100Cr6
AISI/SAE 52100
JIS SUJ2 |
Hardness |
60-64 HRC |
Finish |
Precision ground |
Assembly |
Hole bore ISO N5 |
Cylindrical
Tolerance |
∅11 - ∅16: 0.001
∅19 - ∅25: 0.002
∅30 - ∅50: 0.003 |
