Home/Products/ Punch (Inch)/ Cutting Bush/CG3E

CG3E

Cutting Bush

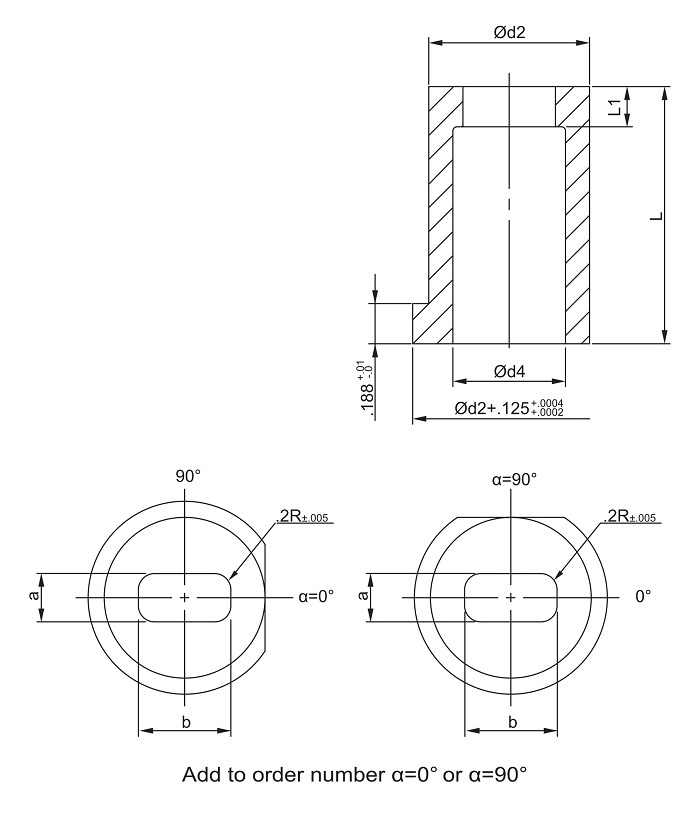

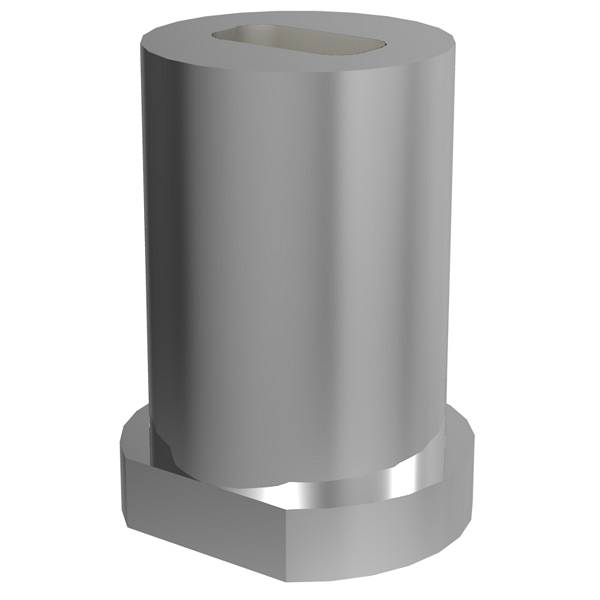

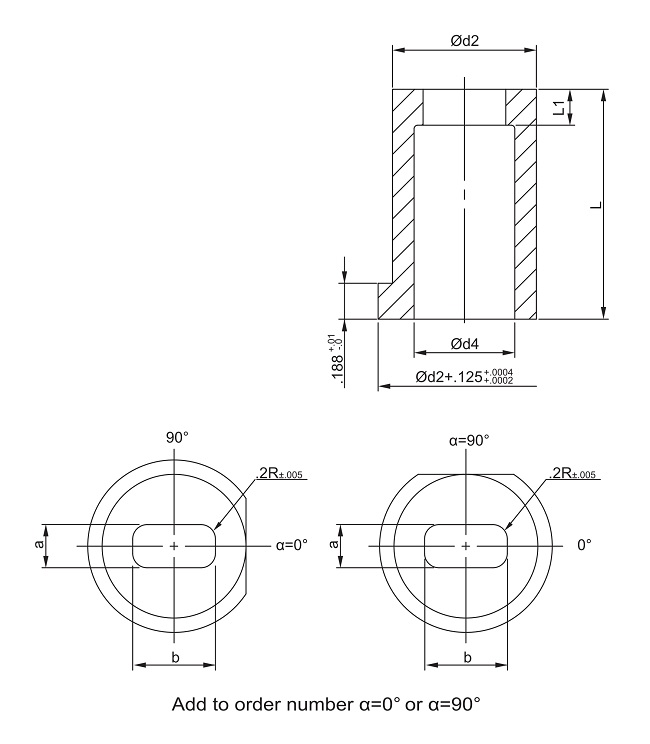

Form cutting bush with shoulder, with protection against torsion–rectangular with radiused corners

Material	SKD11
Hardness	58-62 HRC

Material	SKH51
Hardness	60-64 HRC

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

CG3E

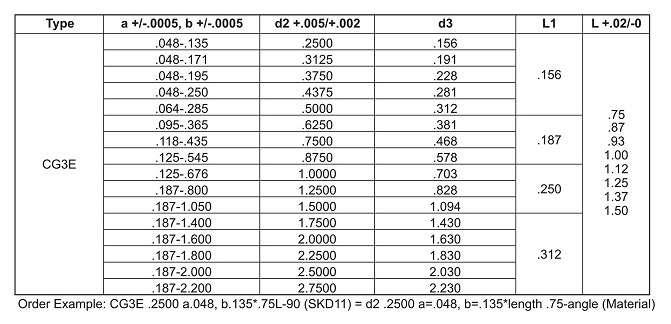

Specification description
