CG12E

Home/Products/ Punch (Inch)/ Cutting Bush/CG12E

CG12E

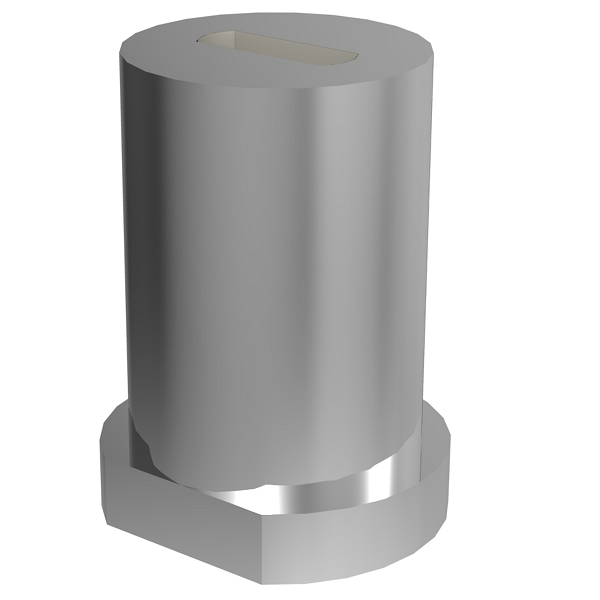

Cutting Bush

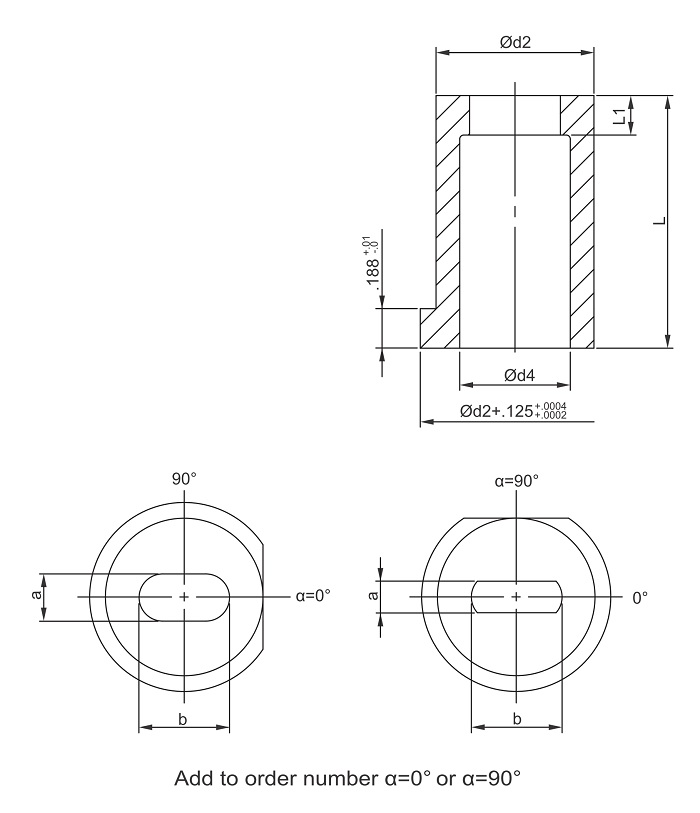

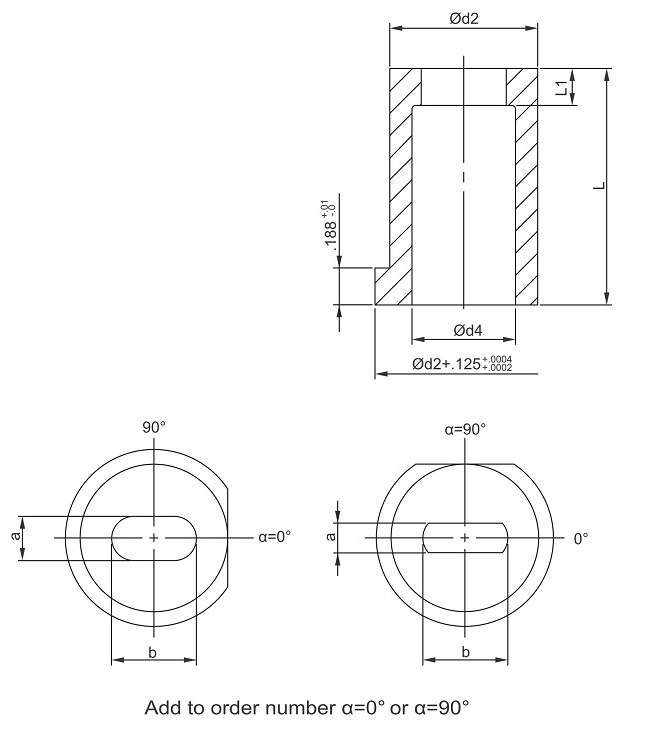

Form cutting bush with shoulder, with protection against torsion-oval with radiused corners

Material	SKD11
Hardness	58-62 HRC

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

CG12E

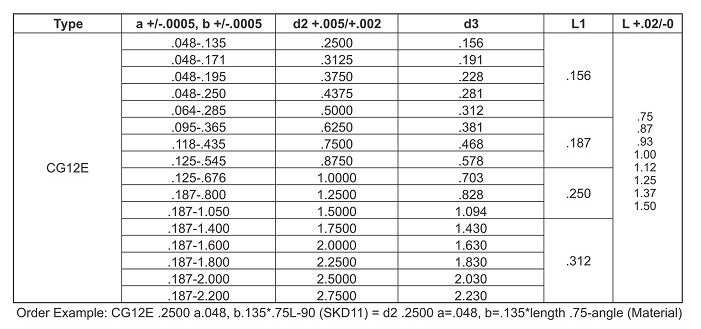

Specification description
