DG8E

Home/Products/ Punch (Inch)/ Quick - Change Cutting Bush/DG8E

DG8E

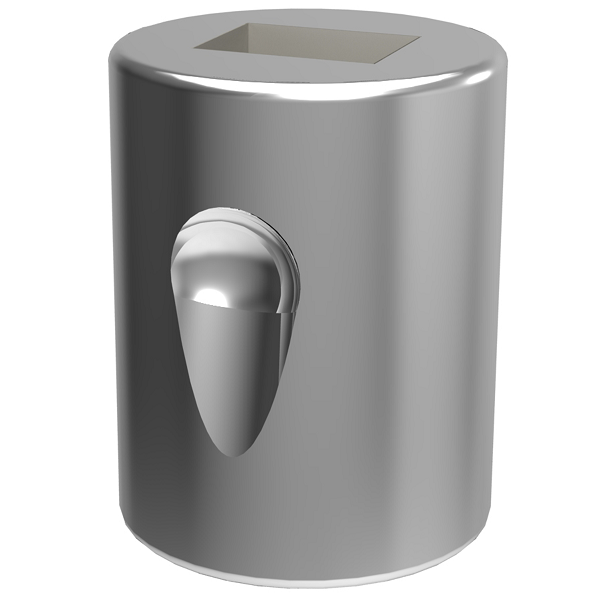

Quick – Change Cutting Bush

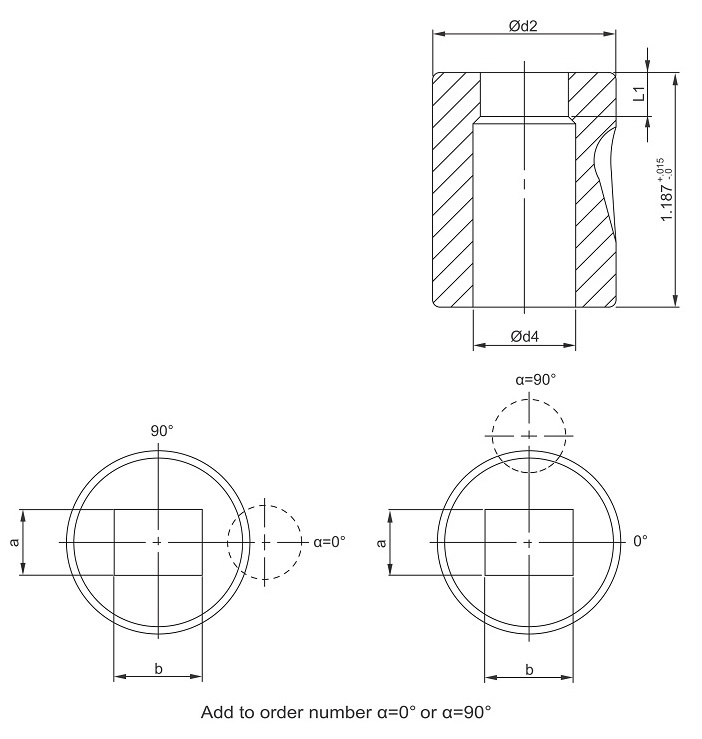

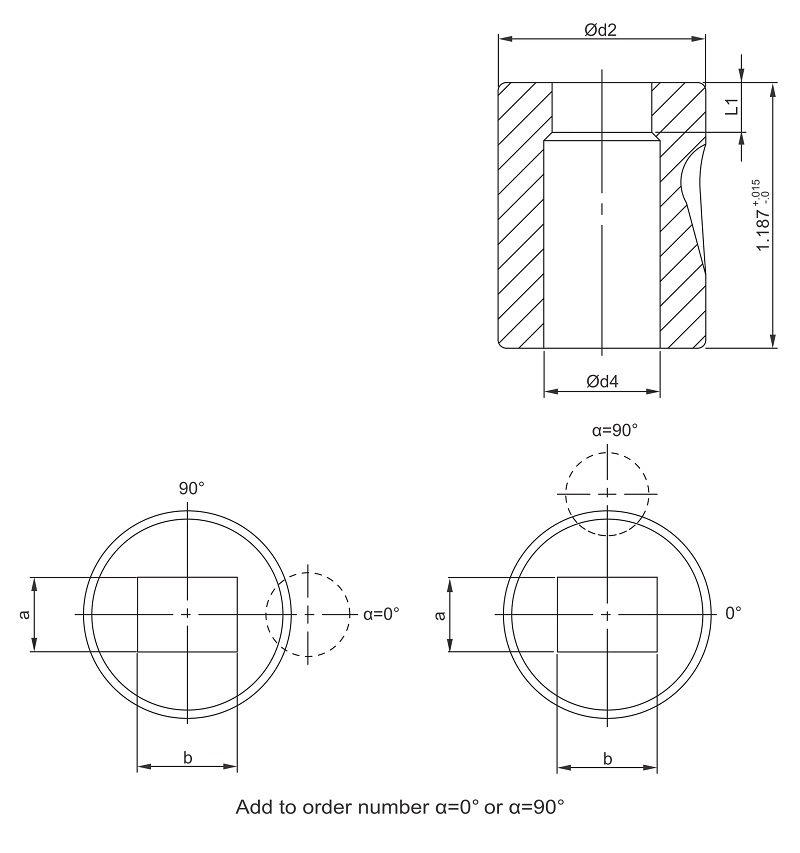

Quick-change form cutting bush square

Material	SKD11
Hardness	58-62 HRC

Material	SKH51
Hardness	60-64 HRC

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modules of material.

Inquiry

DG8E

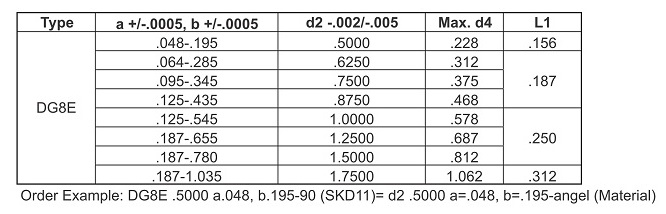

Specification description
