DG12E

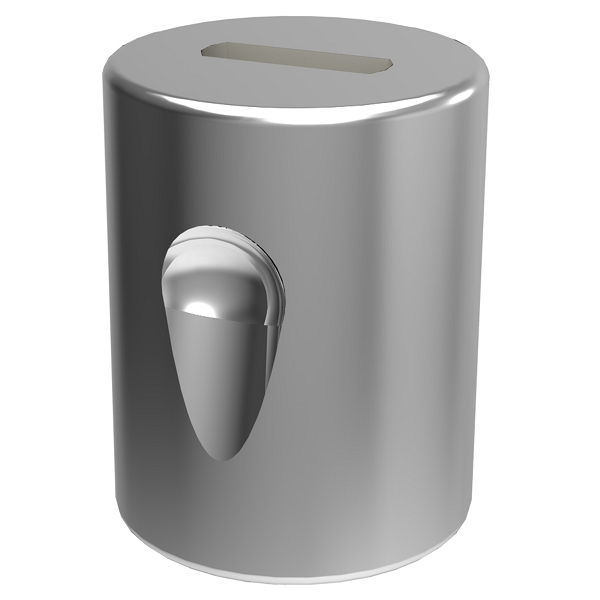

Quick – Change Cutting Bush

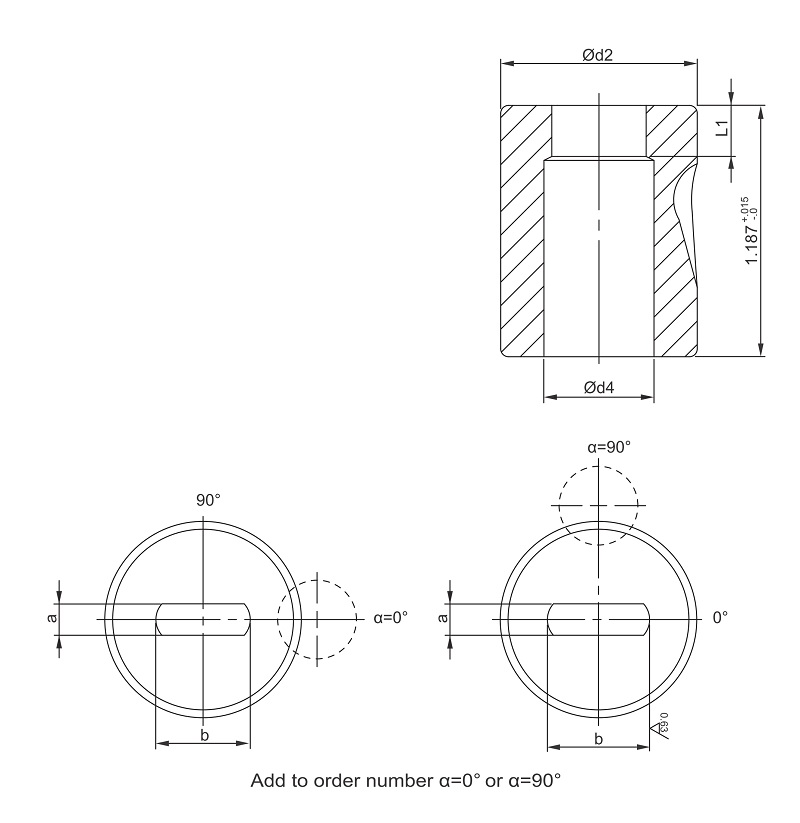

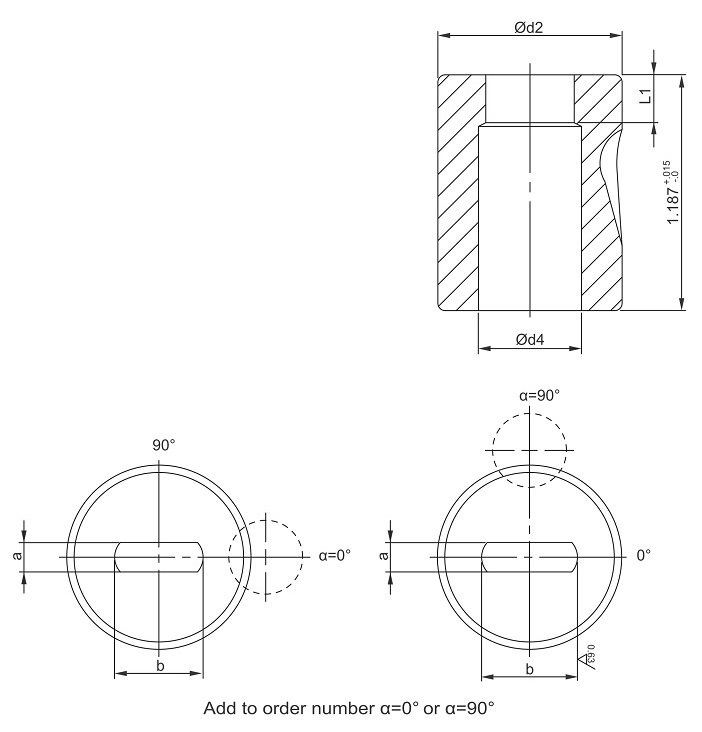

Quick-change form cutting bush rectangular

Material	SKD11
Hardness	58-62 HRC

Material	SKH51
Hardness	60-64 HRC

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modules of material.

Inquiry

DG12E

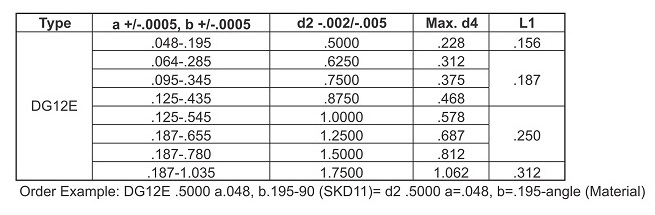

Specification description
