Home/Products/ Punch (Metric)/ Cutting Bush/DCH

DCH

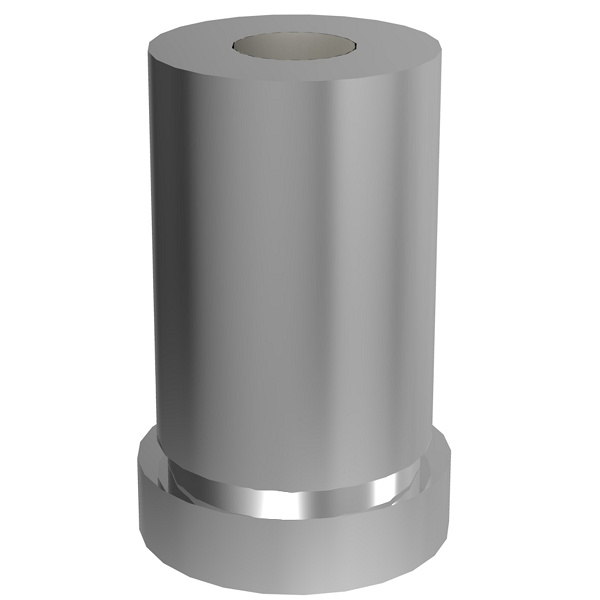

Cutting Bush

ISO 8977, Form B

Cutting bush to press in, round with shoulder

Material	DIN 1.2379
Hardness	HRC 58-62

Material	DIN 1.3343
Hardness	HRC 60-64

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

DCH

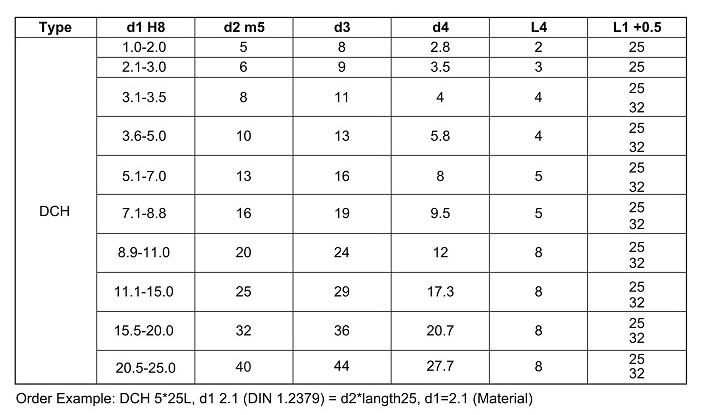

Specification description
