DCG5

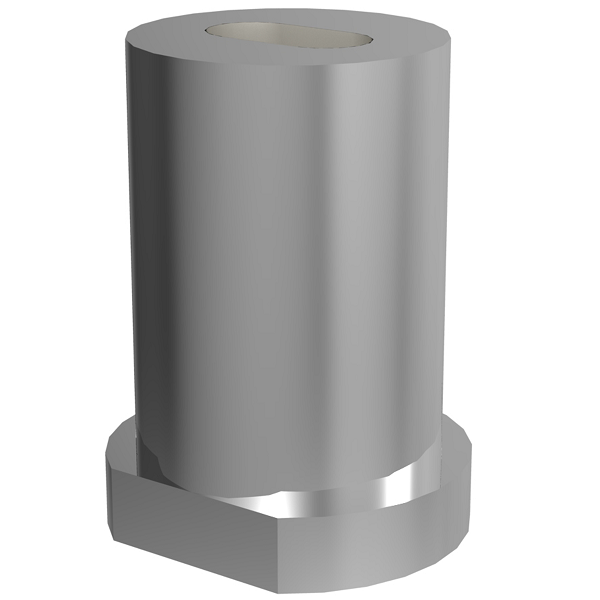

Cutting Bush

DIN/ISO 8977

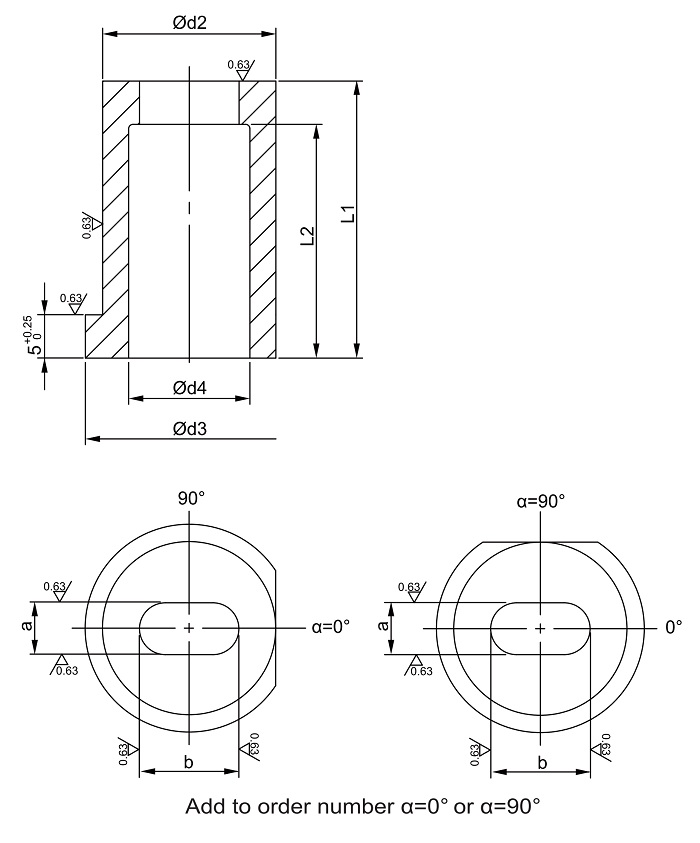

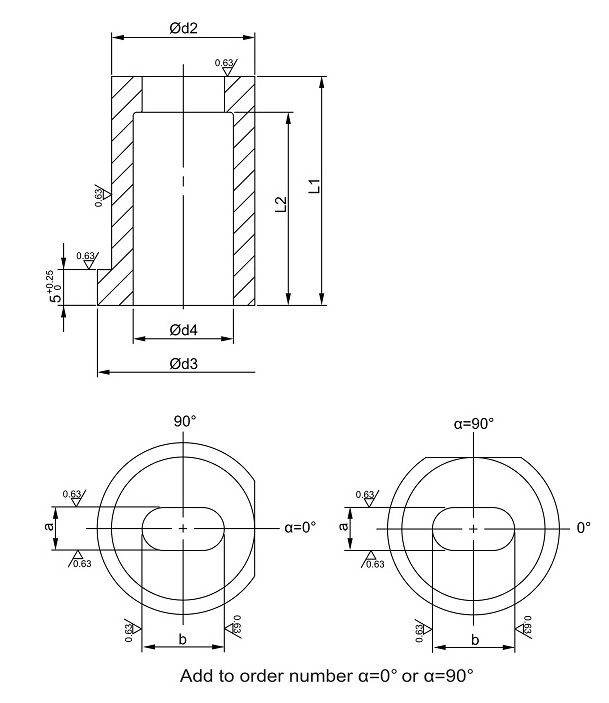

Form cutting bush with shoulder, with protection against torsion-oval

Material	DIN 1.2379
Hardness	HRC 58-62

Dimension a x b free at choice.

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

DCG5

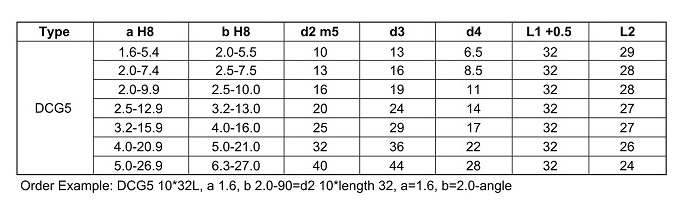

Specification description
