Home/Products/ Punch (Metric)/ Cutting Punch /PPG3

PPG3

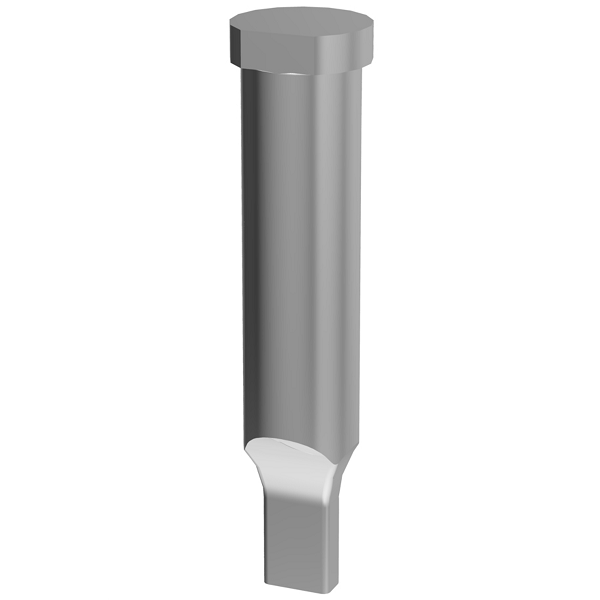

Cutting Punch

ISO 8020

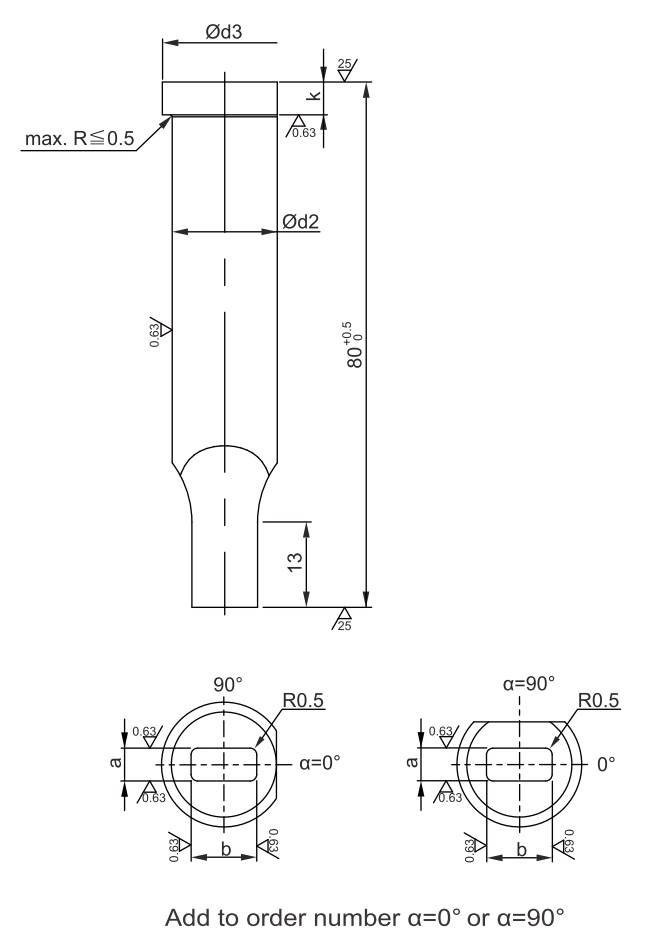

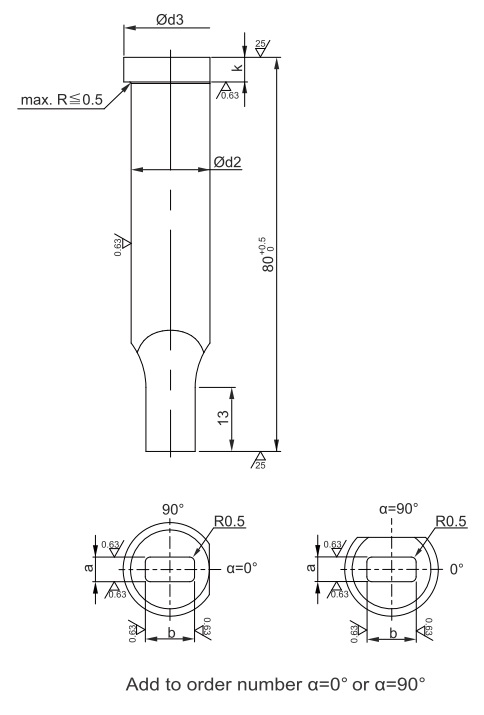

Form cutting punch with cylindrical head with protection against torsion-rectangular with radius corners.

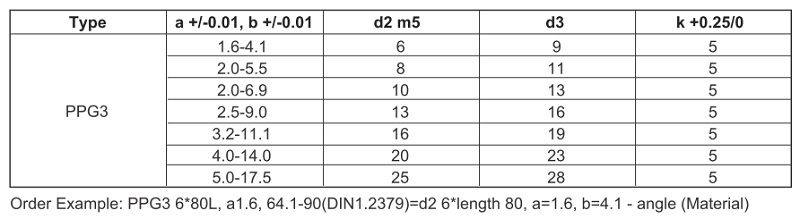

Dimension a x b free at choice.
Diagonal dimension max. d2-0.2 mm
Length 80 mm, other lengths are possible

Material	DIN 1.2379
Shank hardness	HRC 58-62
Head hardness	HRC 40-50

Material	DIN 1.3343
Shank hardness	HRC 60-64
Head hardness	HRC 47-57

Inquiry

PPG3

Specification description
