Home/Products/ Punch (Metric)/ Cutting Punch /PPG12

PPG12

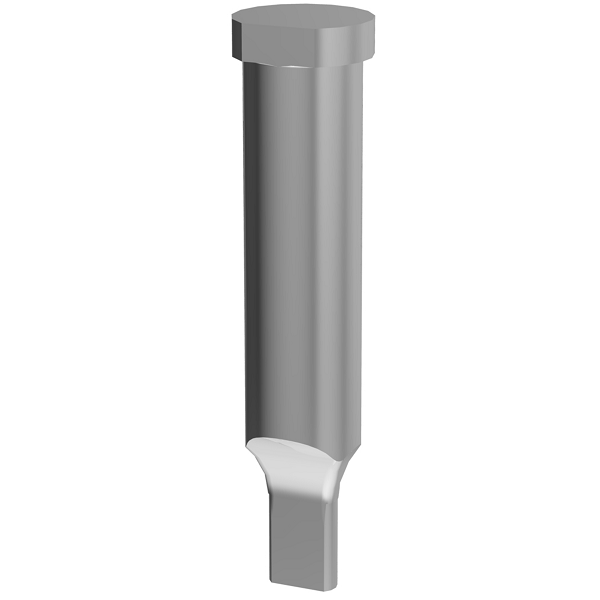

Cutting Punch

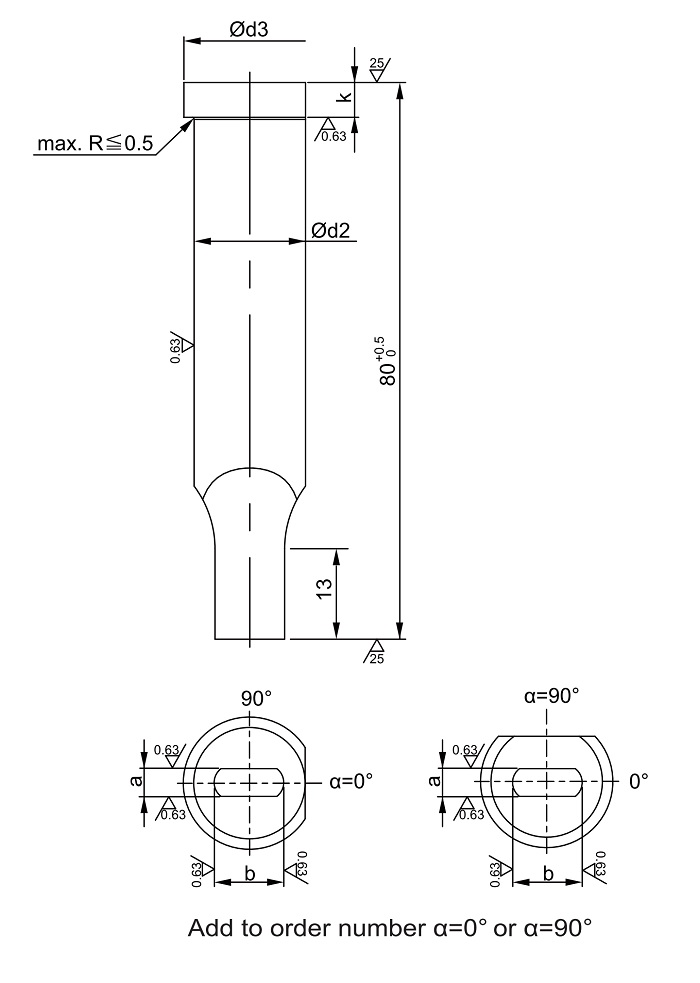

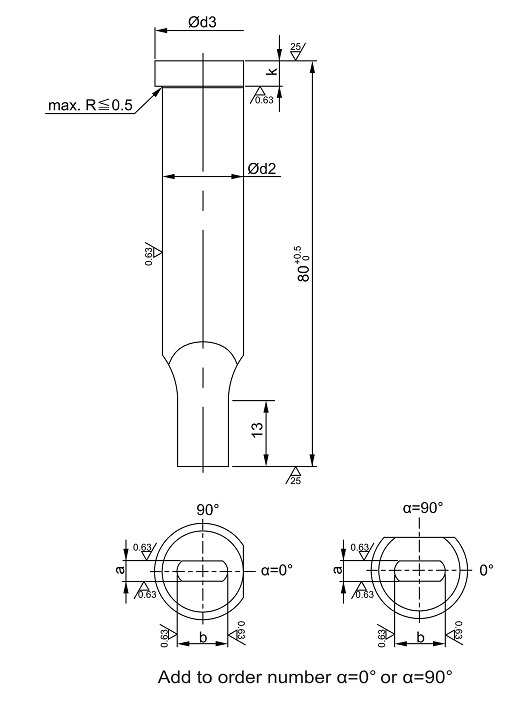

Form cutting punch with cylindrical head with protection against torsion – oval with radiused corners

Dimension a x b free at choice.
Length 80 mm, other lengths are possible

Material	DIN 1.2379
Shank hardness	HRC 58-62
Head hardness	HRC 40-50

Material	DIN 1.3343
Shank hardness	HRC 60-64
Head hardness	HRC 47-57

PPG12

PPG12

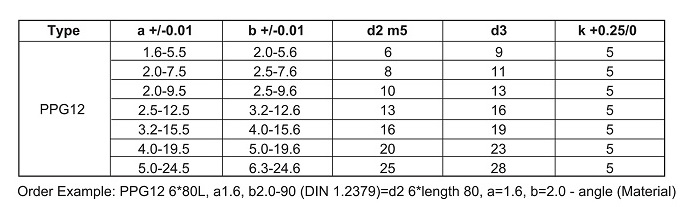

Specification description
