DBA

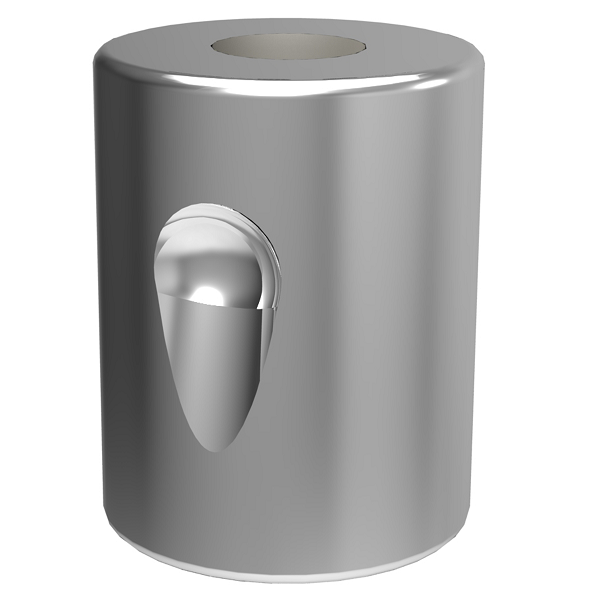

Quick – Change Cutting Bush

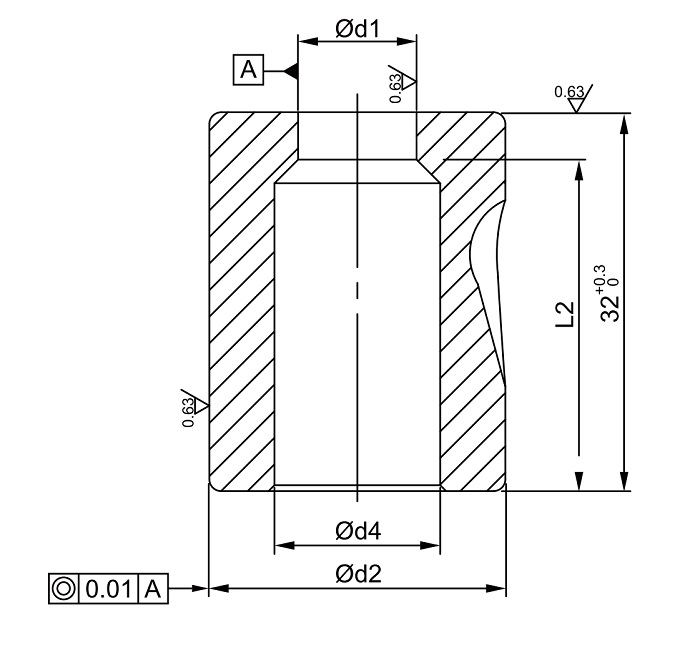

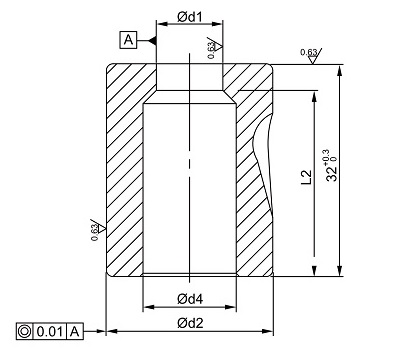

Quick-change cutting bush round with barrel-shaped cutting borehold(upon request available cylindrical tool.)

Material	DIN 1.2379
Shank hardness	HRC 58-62

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

DBA

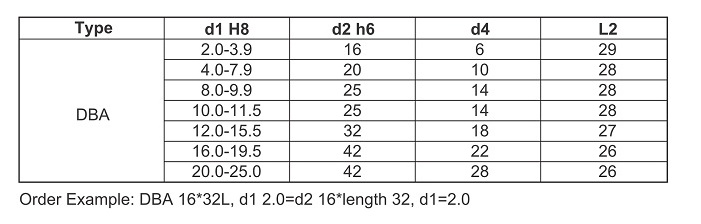

Specification description
