DG3

Quick – Change Cutting Bush

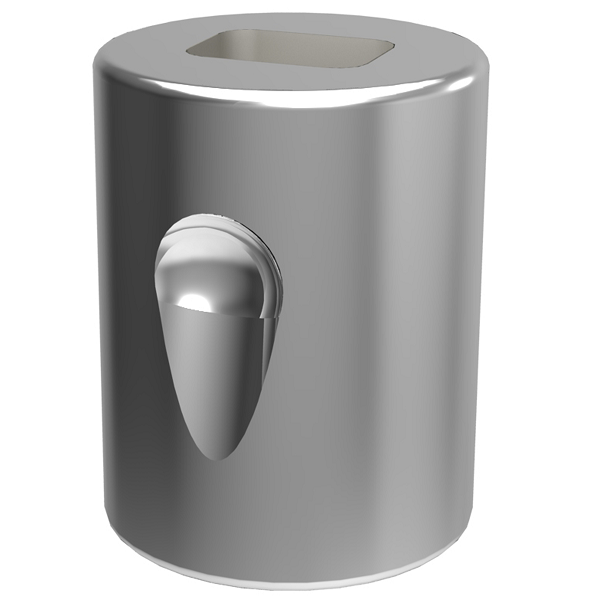

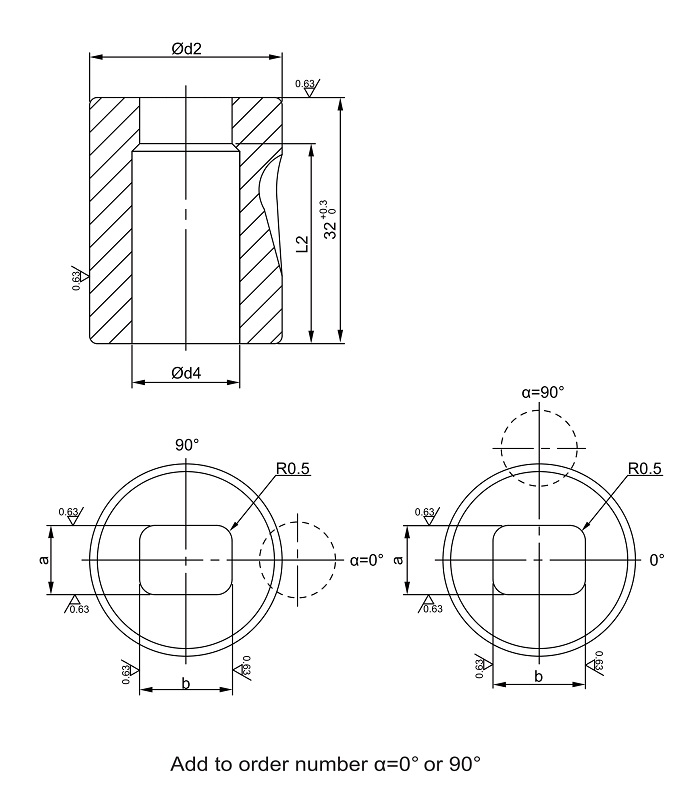

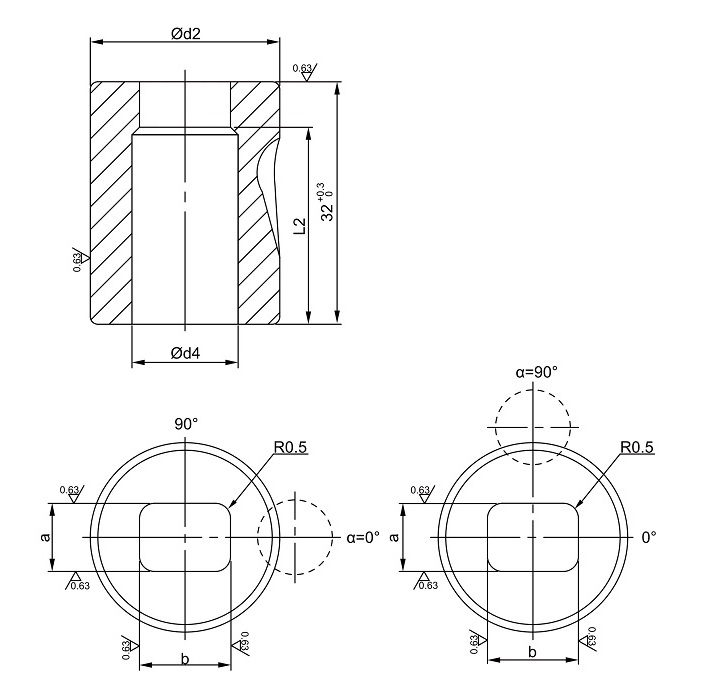

Quick-change form cutting bush-rectangular with radiused corners

Material	DIN 1.2379
Shank hardness	HRC 58-62

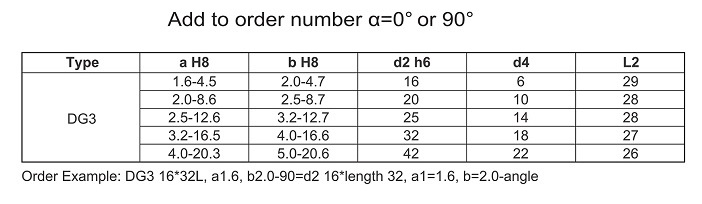

Dimension a x b free at choice, diagonal dimension max. d4 - 1.0mm

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

DG3

Specification description
