DG5

Home/Products/ Punch (Metric)/ Quick - Change Cutting Bush/DG5

DG5

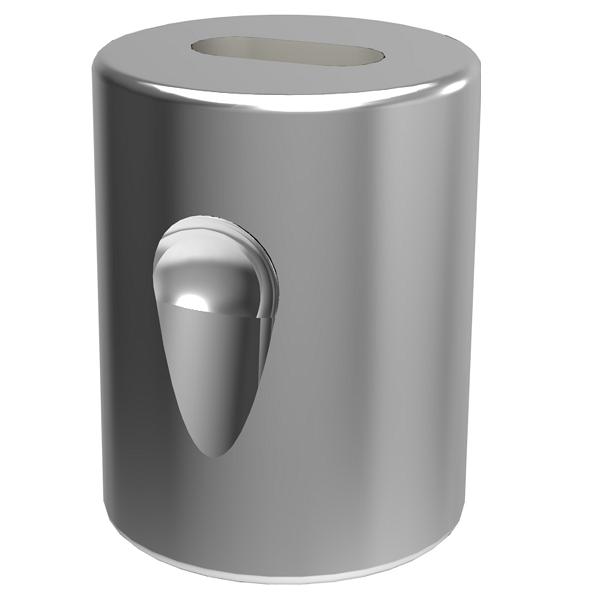

Quick – Change Cutting Bush

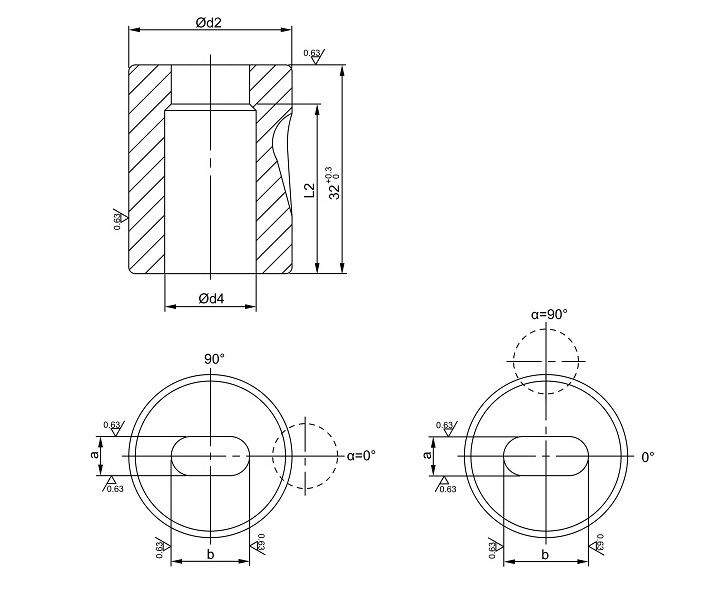

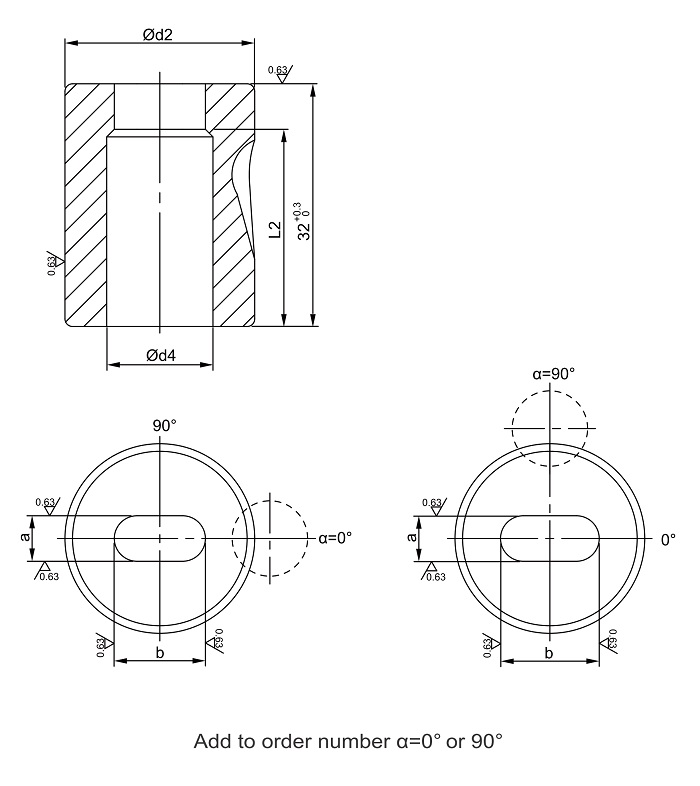

Quick-change form cutting bush-oval

Material	DIN 1.2379
Shank hardness	HRC 58-62

Dimension a x b free at choice.

Indication: When matching punch and bush, pay attention to the bigger cutting clearance.
Please refer to Technical Information, the modulus of material.

Inquiry

DG5

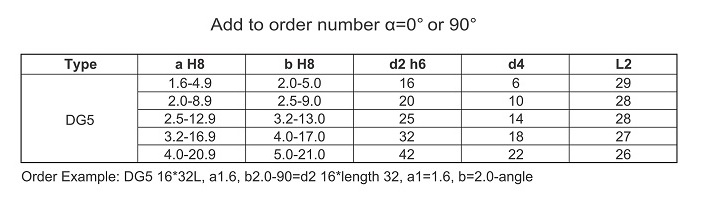

Specification description
